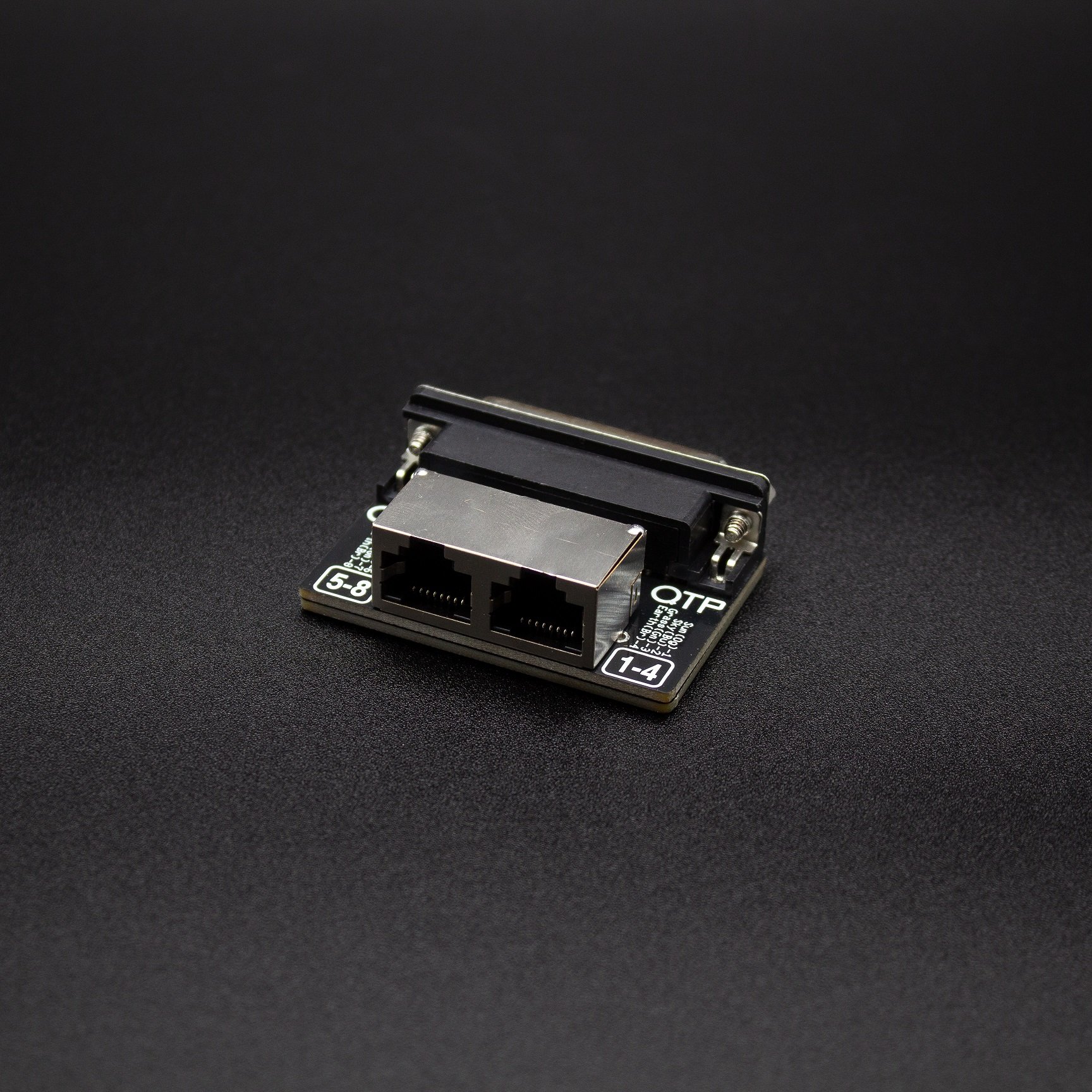

AES-72-4E to DB25-F Adapter
Basic Features
Converts AES59 (DSUB) to AES72 Type 4E (QTP + Cat5e/Cat6)

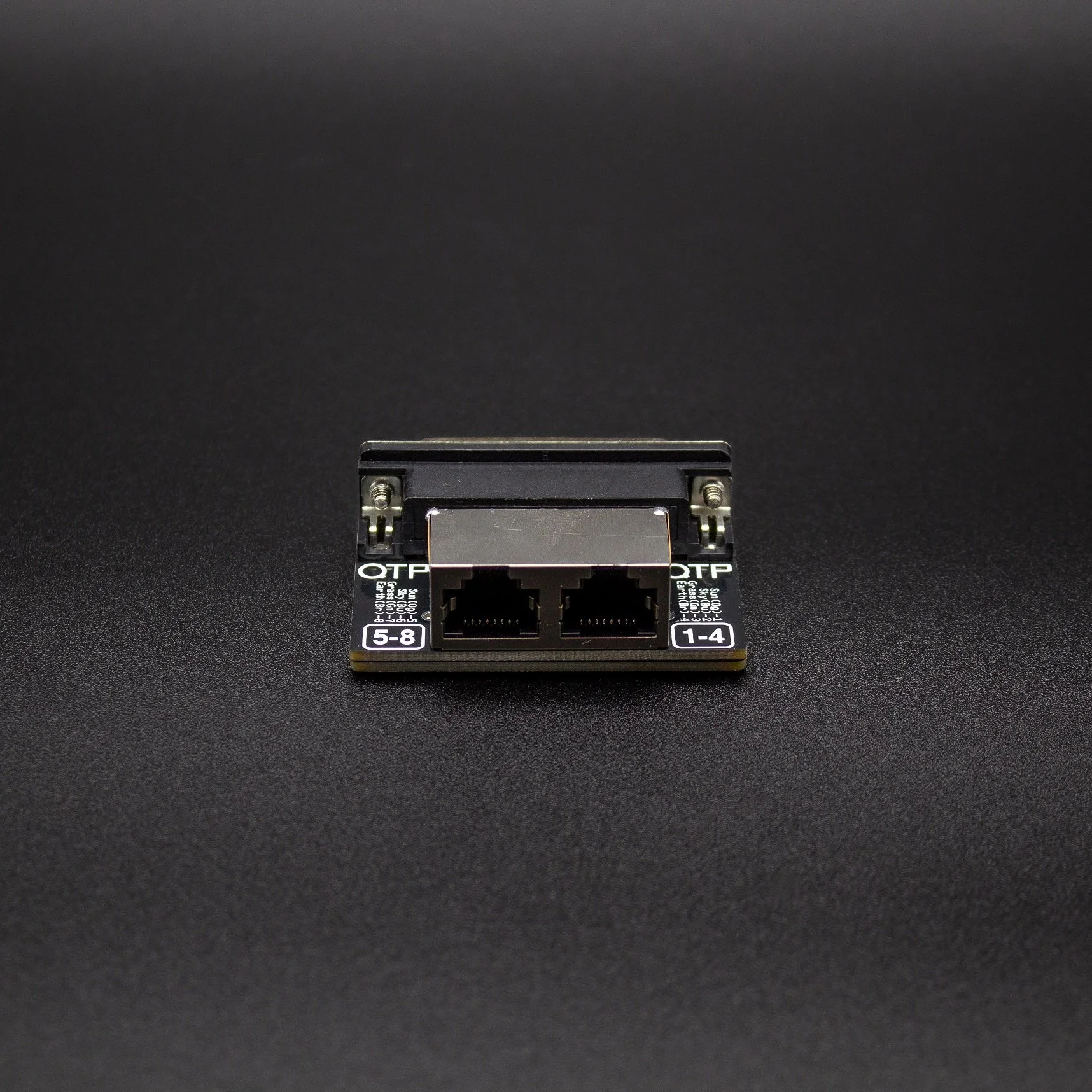

Converts 8 balanced channels of audio between a DB25-F connector to 2x RJ45 connectors
Allows up to 4 channels of Balanced audio to be carried along a single Cat-5e/6 cable,
Allows up to 4 pairs of AES/EBU audio to be carried along a single Cat-5e/6 cable,
This adapter connects the Shield connections when used with Shielded Cat5e/6.
Use of shielded cable allows use of Phantom Power with Microphones.
Reduces installation costs by eliminating the need for traditional multipair snake cabling.
Double-PCB construction - Shields and prevents accidental contact with exposed signal contacts.
Configuration Descriptions
DB25-F connector (sockets) - Used to connect to DB25 extensions and some breakout cables.
4-40 screw posts attached to DSub connector
AES-72 Type 4E is compatible with other 'Audio Over Cat5' brands such as:
Thomann
Redco
Neutrik
Studio Hub
Pinout.
